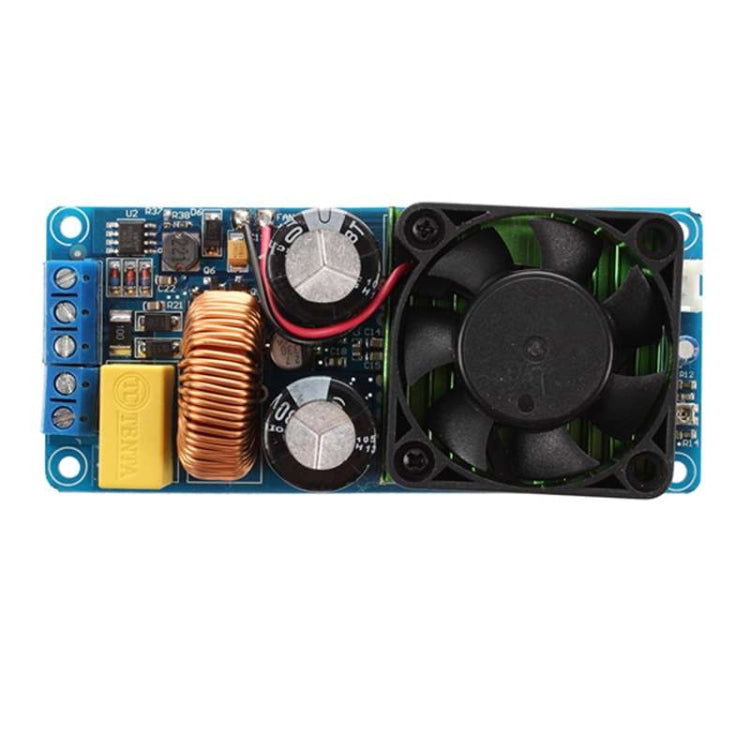

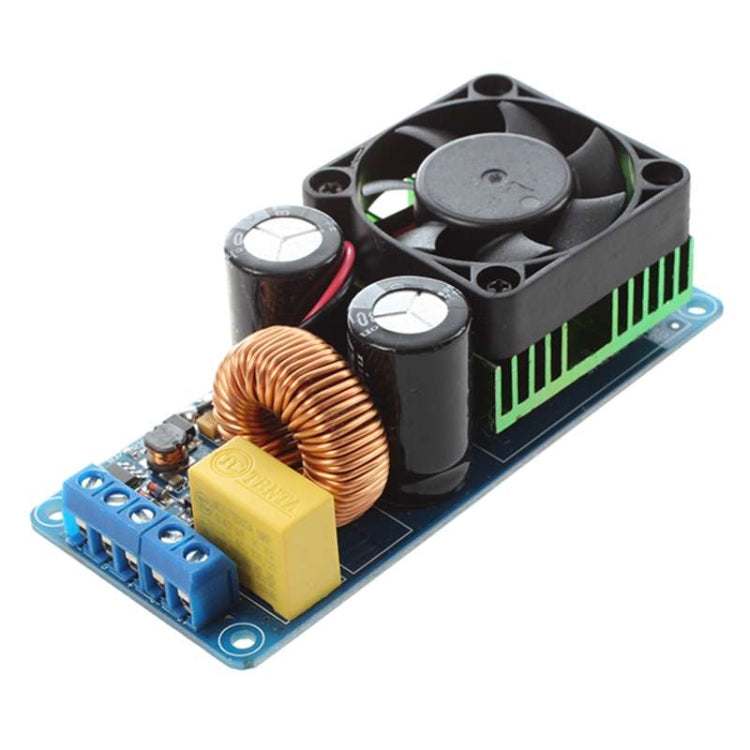

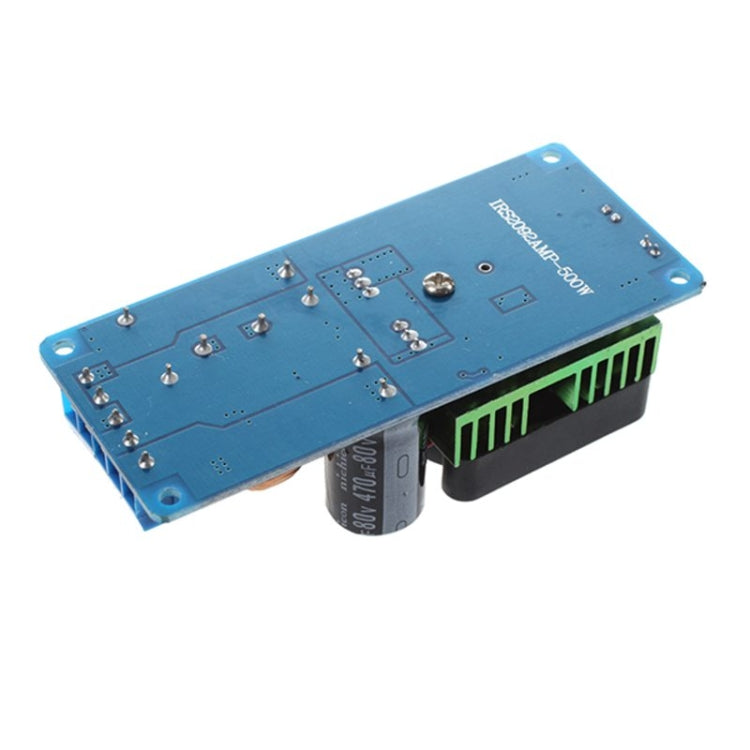

1. Power supply: DC dual power supply ± 58 ± 70v
2. Rated output power: 500w (± 65v power supply, 4 ohm load, 10% deformation)
3. Efficiency: greater than 90%
4. S / N ratio: 90db
5. Total harmonic distortion:
380w (+/- 65 power 4 ohm speaker, distortion <0.1%)
280w (+/- 65 power 8 ohm speaker, distortion <0.1%)
6. Frequency range: 20Hz-20kHz
7. Voltage magnification: 36 times
8. Input sensitivity 1.5v (RMS)
9. Output short circuit protection: yes
10. Output DC bias protection Speaker protection: yes
11. Overheat protection: Yes, the temperature of the radiator is higher than 100 degrees Celsius, turn off the output!
12. Product size: about 100 × 50 × 30mm
13. Net weight: 100g

Product Features

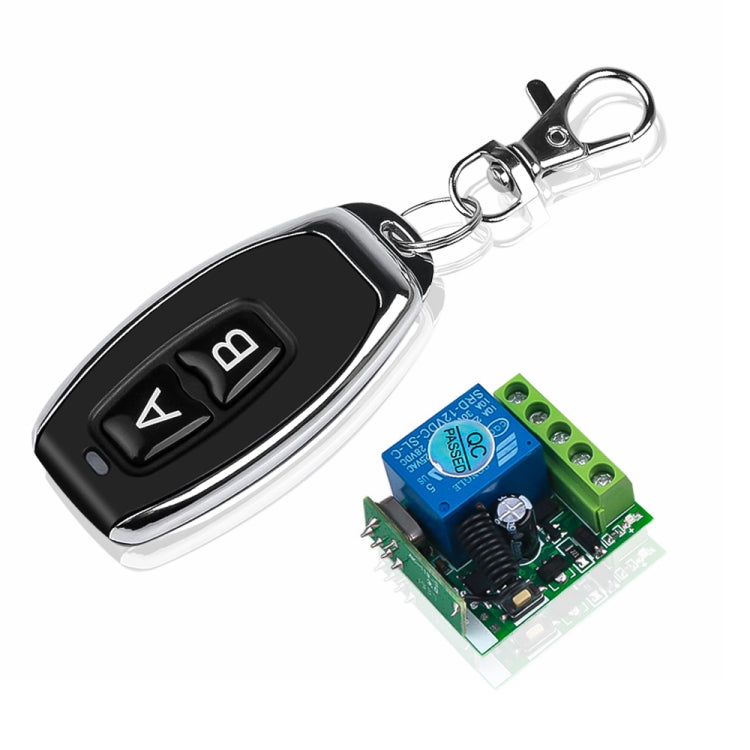

1. Output relay switching capability: Capable of controlling loads with voltages up to 250V. Requires a 12V power supply. 2. Small Size: The circuit board measures only 35x30x17mm.
3. User-Adjustable Operating Mode: Self-locking, interlocking, inching, and time-delay modes can be adjusted via pin short-circuit caps.
4. Learning Pairing: You can learn to pair with any remote controller with the same frequency (dont worry if you lose your remote during use; simply buy a new one and learn the code without having to replace the entire set, significantly saving costs).

Technical Parameters
1. Operating Voltage: DC 12V (3V/6V/9V/24V available on request)
2. Quiescent Current: Less than or equal to 10mA
3. Operating Temperature: -40 degrees Celsius to +80 degrees Celsius
4. Receiver Sensitivity: More than or equal to -95dB
5. Operating Frequency: Commonly 315MHz, 433.92MHz (other frequencies available on request)
6. Output Current: Less than or equal to 10A
7. Operating Mode: Inching, Self-Lock, Interlock, Delay (Adjustable)
8. Output Mode: Contact Output (AC and DC controllable)

Applications
This product uses an intelligent microprocessor control system and is suitable for garage door control, lighting control, remote curtain control, access control systems, and various motor control systems. It features a compact size, easy installation, and safe and reliable operation.

Learn How to Pair Code
1. Inching Learning Method:
Press the pairing button on the control panel once. The LED indicator will flash once. Then, press the button on the remote control to be paired. The LED indicator on the control panel will flash several times, indicating successful pairing.
2. Self-locking Learning Method:
Press the pairing button on the control panel twice. The LED indicator will flash twice. Wait until the LED indicator turns off. Then, press the button on the remote control to be paired. The LED indicator on the control panel will flash several times, indicating successful pairing.
3. Interlocking Learning Method:
Press the pairing button on the control panel three times. The LED indicator will flash three times. After the LED indicator turns off, press the A and B buttons on the remote control to be paired. The LED indicator on the control panel will flash several times, indicating successful pairing. 4. 5-Second Delay Learning Method:
Press the control panel pairing button 4 times in a row. The LED indicator will flash 4 times. After the LED indicator goes off, press the button on the remote control you want to pair. The control panel LED indicator will flash several times, indicating successful pairing.
5. 10-Second Delay Learning Method:
Press the control panel pairing button 5 times in a row. The LED indicator will flash 5 times. After the LED indicator goes off, press the button on the remote control you want to pair. The control panel LED indicator will flash several times, indicating successful pairing.
6. 15-Second Delay Learning Method:
Press the control panel pairing button 6 times in a row. The LED indicator will flash 6 times. After the LED indicator goes off, press the button on the remote control you want to pair. The control panel LED indicator will flash several times, indicating successful pairing.

Precautions
1. Do not operate with power on. Always turn off the power before operating. Only power on after confirming that everything is working properly.
2. If the remote control battery voltage is low, please replace the batteries immediately. (A low battery voltage in the remote control generally reduces the control range.) 3. When using wireless electronic products, avoid strong interference sources such as metal covers, large electronic devices, and electromagnetic fields to prevent the remote control from being too close to the receiver or causing it to malfunction.
4. Do not use this electronic product improperly. Improper use can reduce product performance and lifespan, and in severe cases, damage the product and pose a safety hazard.
5. The delay time setting is automatically set when entering learning mode. The delay time setting is linked to the number of times the learning button is pressed. Please pay special attention to this.

1. Made of quality material, durable to use.
2. 6 pins pitch connector, 1x5 type 5 keys.
3. White sticker can peel off for adhesive mounting.
4. The back can be firmly fixed to the chassis surface.
5. Used widely in industrial and home electronic equipments, instrument, etc.

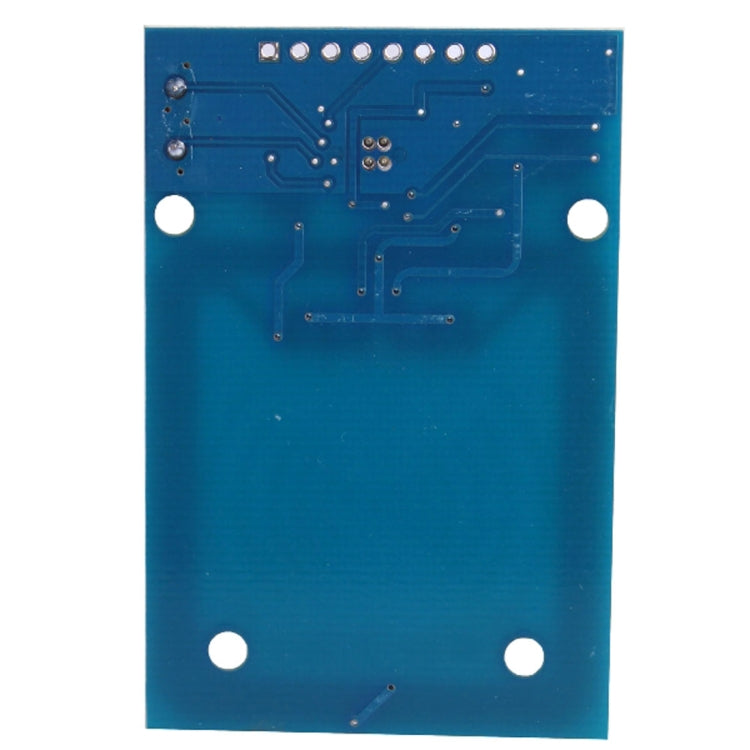

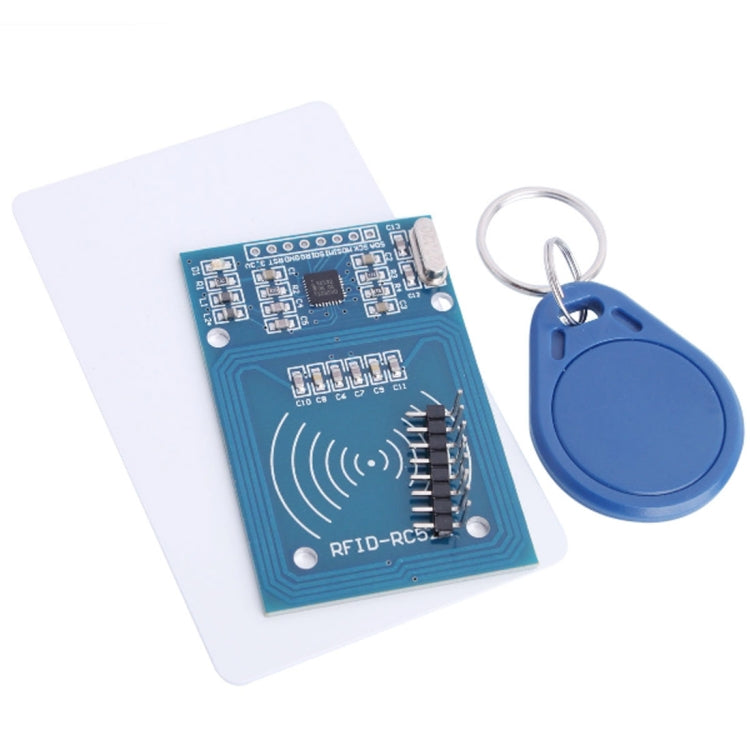

Main Features:
1. Working current: DC 3.3V / 13 - 26mA
2. Idle current: DC 3.3V / 10 - 13mA
3. Sleep current: < 80uA
4. Peak current: < 30mA
5. Working frequency: 13.56MHz
6. Supports card: Mifare1 S50, mifare1 S70, mifare Ultralight, mifare Pro, mifare Desfare
7. Application: Various electronic products and DIY projects

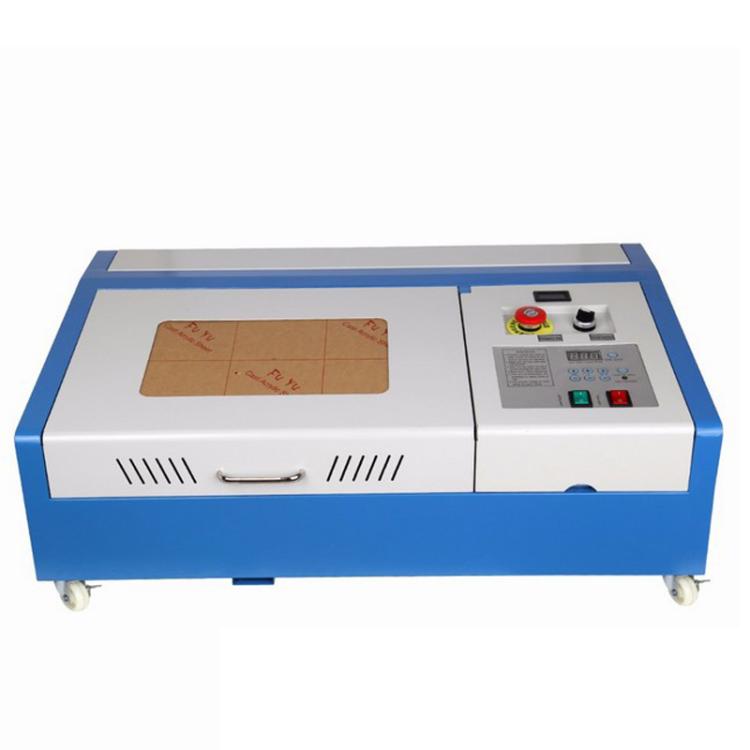

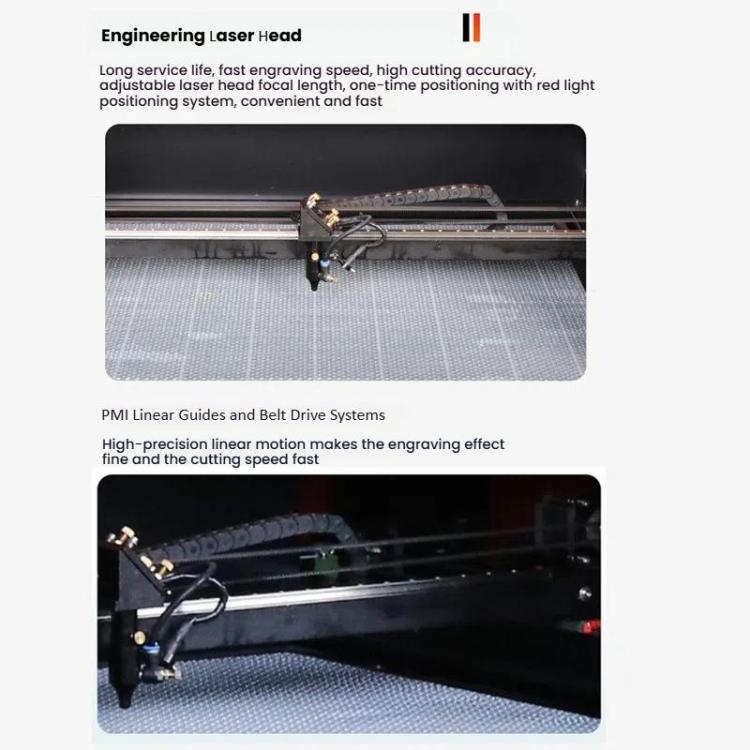

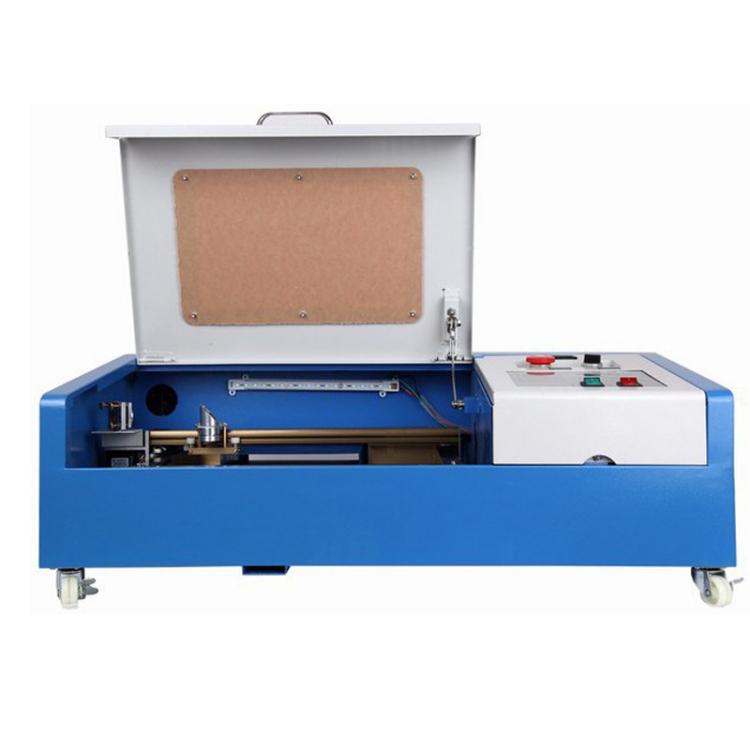

1. It adopts a high-quality CO2 laser tube and a high-precision stepper motor. With a large engraving area of ??12"x 8" (30x20cm), it can engrave most small and medium-sized products.
2. Provide a USB port, convenient to connect to a desktop or laptop, to achieve more precise engraving control;

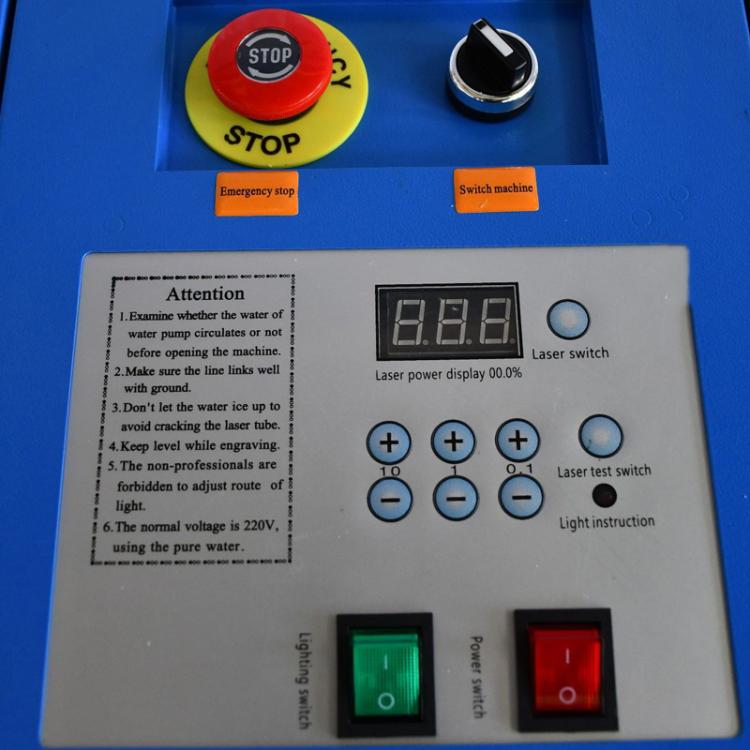

3. The control panel is equipped with an LCD screen, which can easily and clearly observe the machines status.
4. This product suits non-metallic materials such as ox horn mail, bamboo, wood products, red plastic seals, crystal, plexiglass, jade, paper, rubber, acrylic, two-color plates, etc.

Parameters:
1. Laser type: closed carbon dioxide laser tube
2. Working area: 30 × 20cm
3. Laser power: 40w/50w
4. Minimum molding text: 3mm
5. Connection method: USB
6. Working platform: fixture or honeycomb platform
7. Graphic format: BMP, PLT, AI, DST, DXF, etc
8. System support: WINDOWS2000/WINDOWS XP/Vista/Win7
9. Control software: LaserDRW
10. Cooling method: water cooling system
11. Working voltage: 220v/110V
12. Working temperature: 5%--95%
13. Machine size: 80 x 500x 31cm

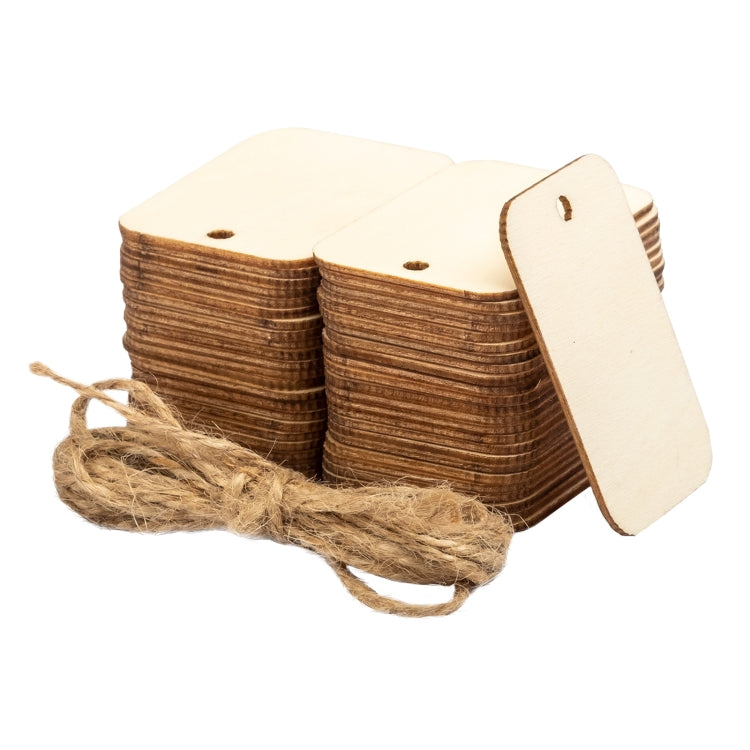

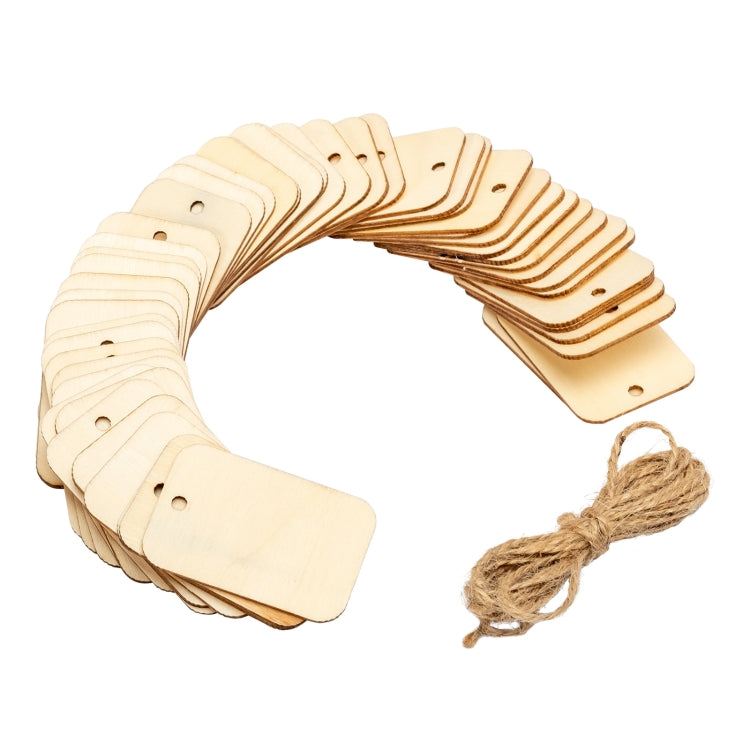

1. Made of natural poplar, smooth to the touch, no giant knots or rough spots, non-toxic and anti-allergic.
2. Unfinished blank poplar wood chips are ideal materials for laser cutting engraving, pigment coloring, etc. Use your imagination and creativity to make your special and unforgettable craft wood products, which you can then use twine to hang on walls, windows, trees, etc.
3. Rectangular woodwork can be used for artistic creations such as handmade DIY paintings, Christmas signs, gift tags, handwritten tags, lettering, wish cards, table numbers, hangers, coasters, photo props and many other art and craft projects. Suitable for home decoration, party decoration, festival and tourist attraction decoration.
4. Great for classroom use to help kids learn colors, letters, animals, etc. Perfect for art classes, wedding planning or home decor. Can also be used as a nice decoration for Christmas, baby shower, birthday, new year, etc.
5. Product size: 50 x 33 x 2mm.

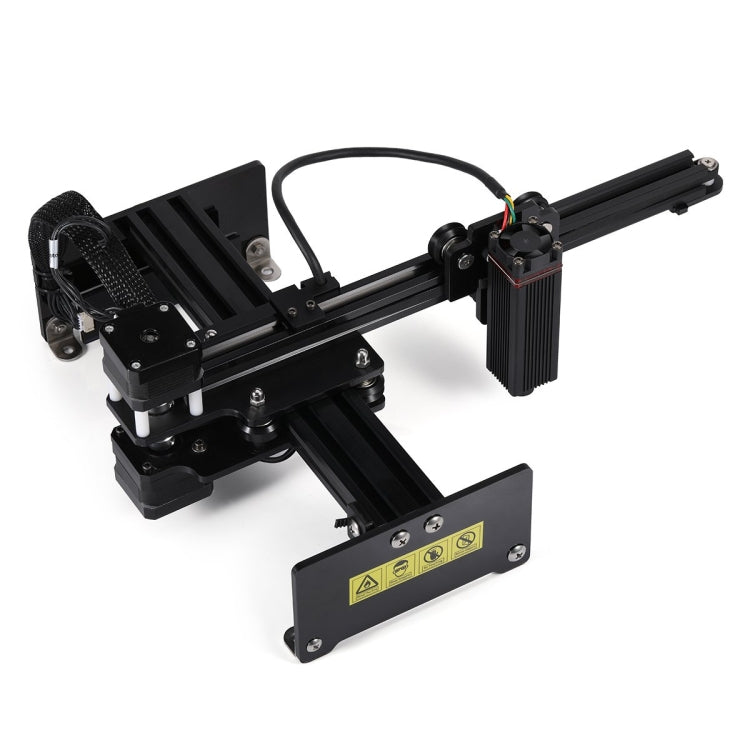

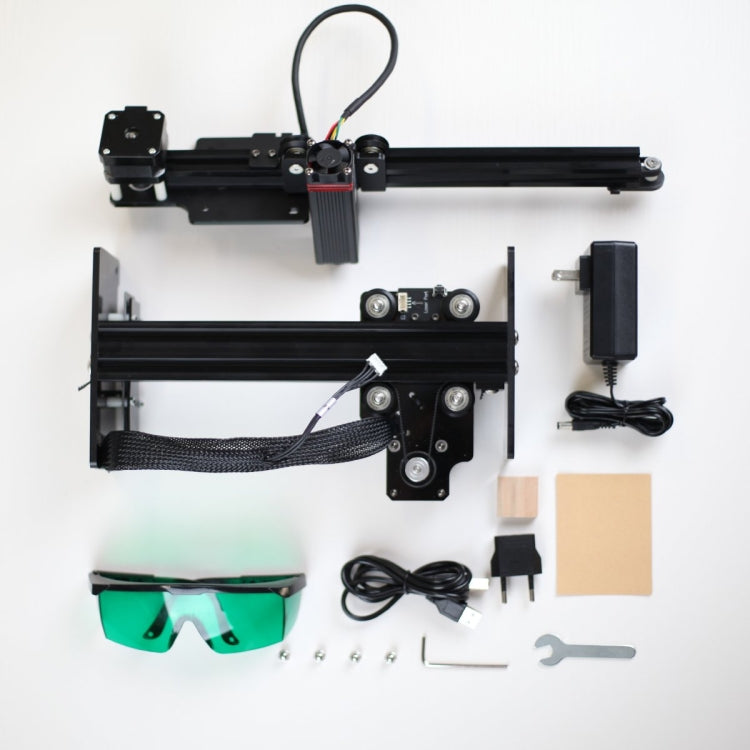

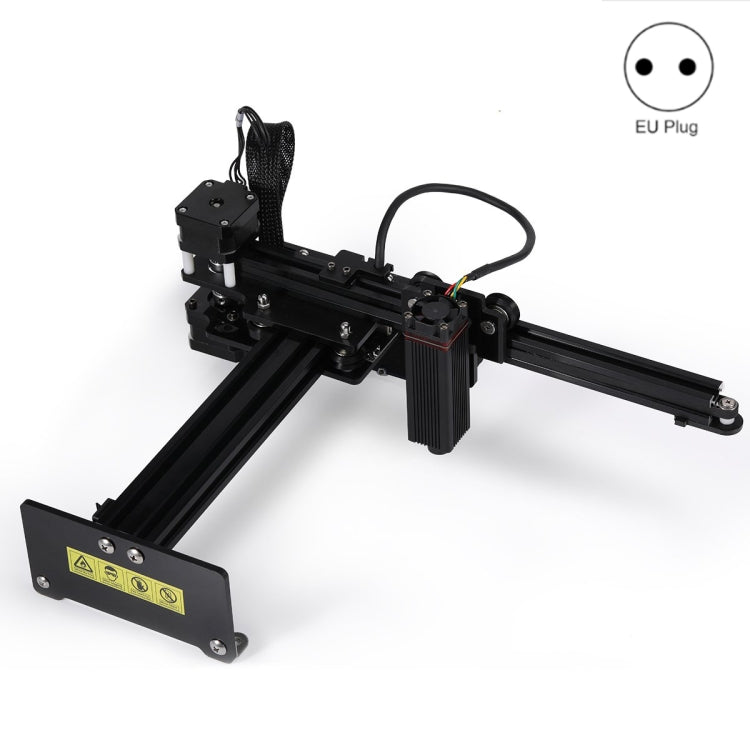

1. Material: Acrylic + Aluminum + Stainless Steel
2. Main Color: Black
3. Power: 3000mW
4. Laser Wave Length: 405nm
5. Image Format: jpg bmp
6. Image Size: 490 * 490 pixels / 0.075mm point distance
7. Image Engraving Pattern: Bitmap Engraving
8. Support System: Win7 / Win8 / XP / Win10
9. Supply Voltage: 5V
10. Supply Current: 500ma
11. Item Size: 16 * 14.5 * 19cm
12. Item Weight: 976g
13. Package Size: 30 * 21 * 23cm
14. Package Weight: 1800g

Features
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
2. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
3. 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
4. Adjustable motor drive current via potentiometer, maximum 2.5A current output
5. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
6. Integrates 5V regulator, allows providing power to Raspberry Pi
7. Onboard multi connector options for stepper motors in different specifications
8. Comes with development resources and manual (examples in BCM2835, wiringPi, and python)

Specifications
1. Motor controller: HR8825
2. Motor drive voltage: 8.2V~28V
3. Motor drive current: 2.5A
4. Logic voltage: 3.3V
5. Mounting hole size: 3.0mm
6. Size: 65 x 56mm

Package List
1. Stepper Motor HAT (B) x 1
2. RPi screws pack (2pcs) x 1
3. Aluminum heatsink x 1

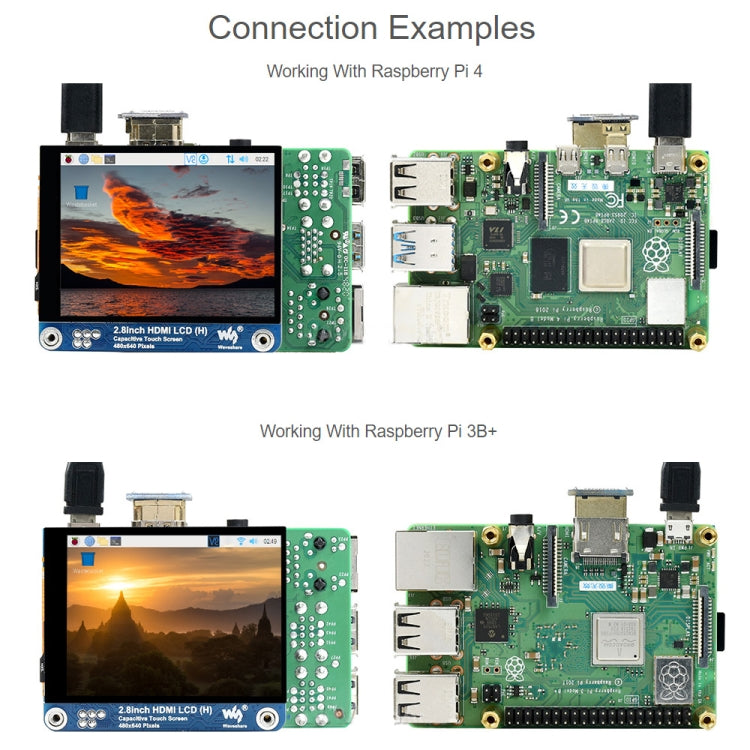

Compatible Models
For Raspberry Pi
1. Support Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie
2. Driver free for USB-C touch
3. Config file is required for I2C touch
4. Supports all versions of Raspberry Pi

For Jetson Nano
1. Support Ubuntu
2. PC
3. Support Windows 11 / 10 / 8.1 / 8 / 7
4. For Jetson Nano and PC, only USB-C touch is available

Package List

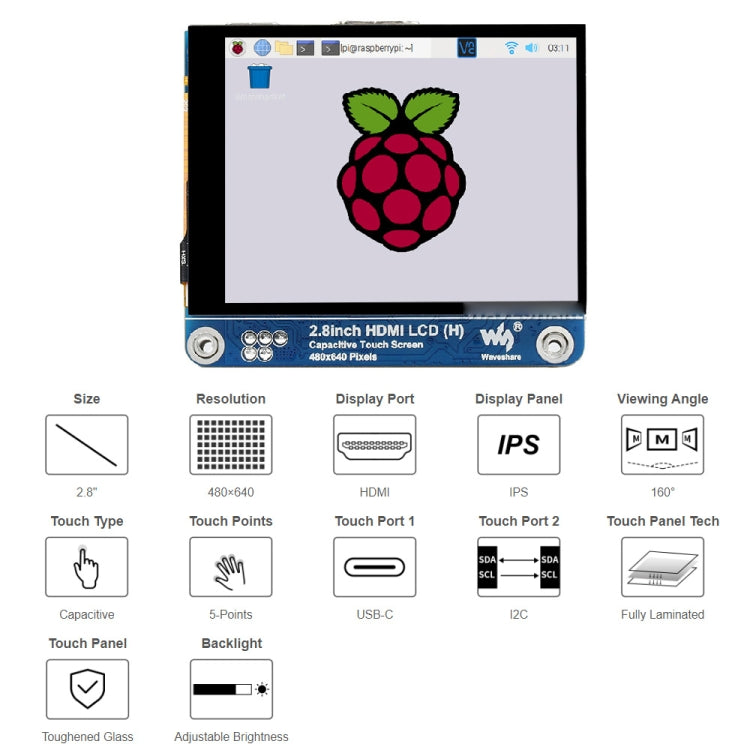

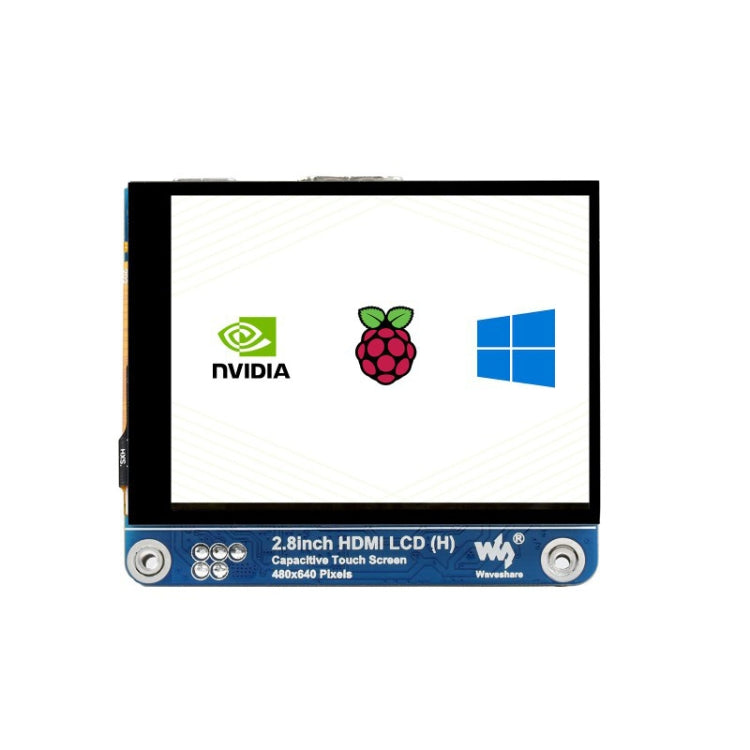

1. 2.8 inch HDMI LCD (H) x 1
2. HDMI Adapter (C) x 1
3. HDMI Adapter (B) x 1
4. HDMI cable x 1
5. USB-A to USB-C cable x 1
6. Screws pack x 1

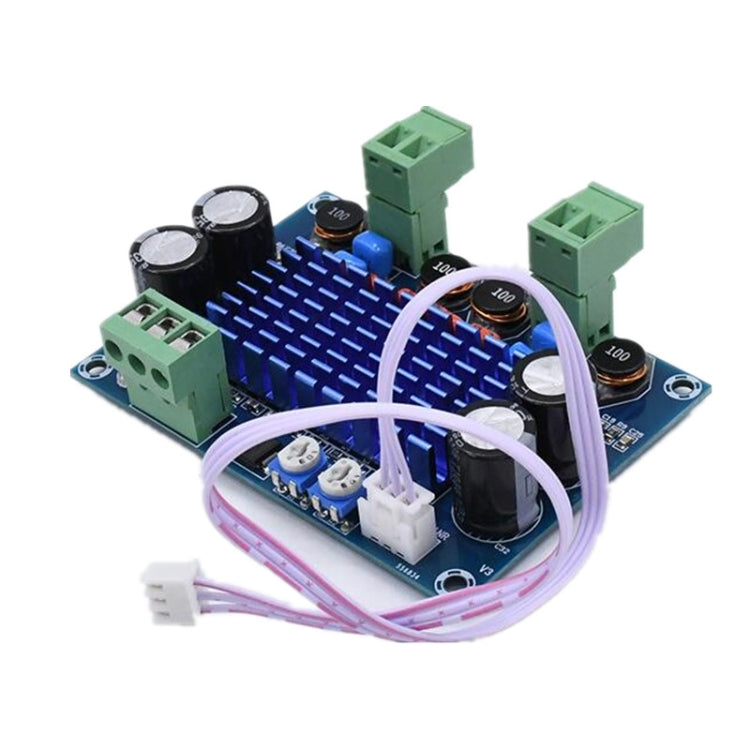

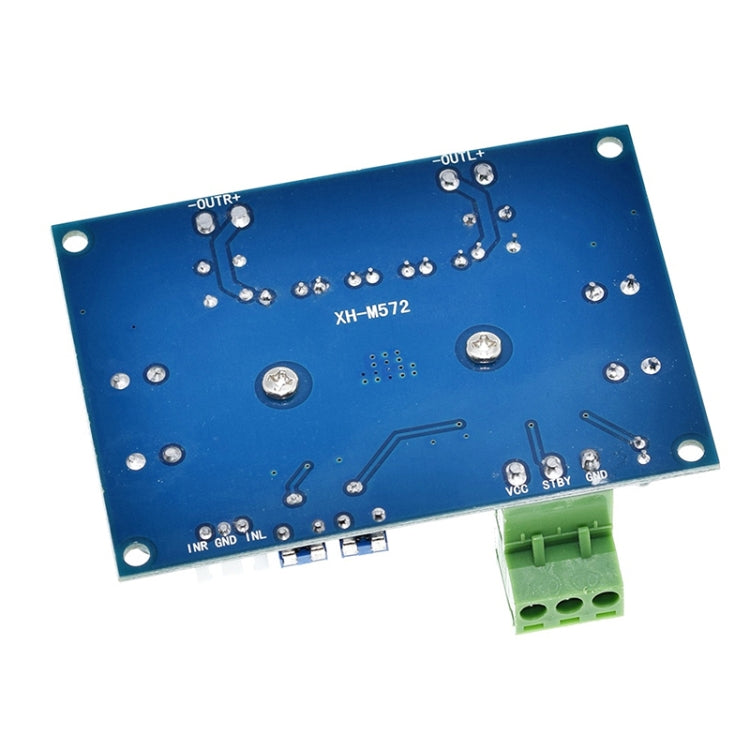

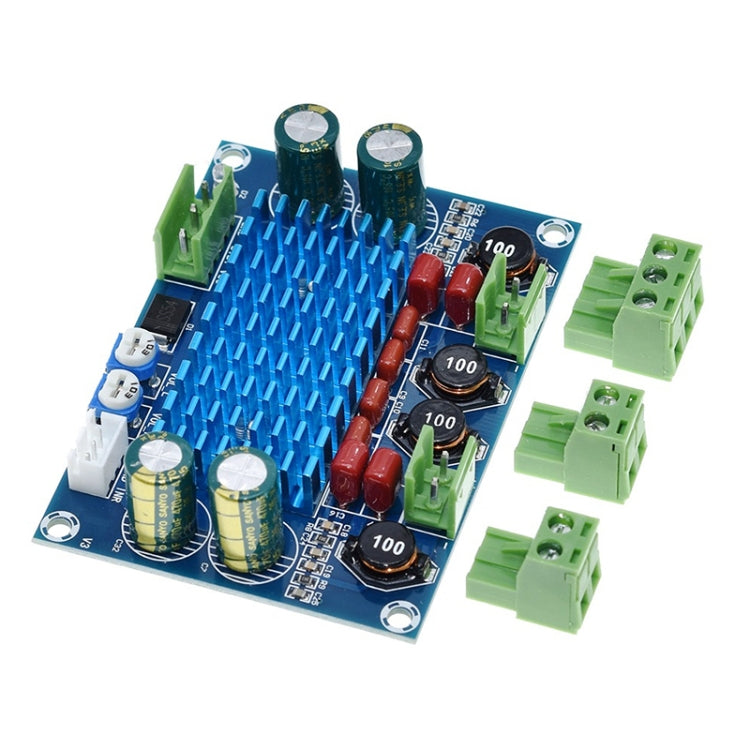

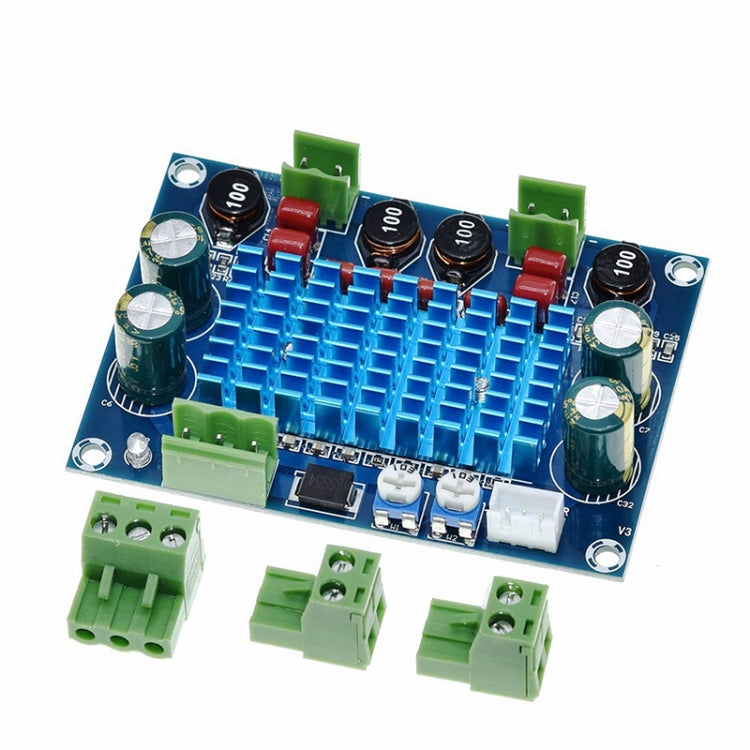

1. Purpose: Digital power amplifier board
2. Chip model: TPA3116
3. Input voltage: DC8-28V
4. Output impedance: 4-82 ohm
5. Output power: 2 x 120w
6. Size: 83x60x25mm
7. Weight: About 65g

Instructions for use:
1. Connect the power input terminal to a DC8-28V power supply. The recommended power supply is DC24V with a current of 6A, and the output power can reach 120W per channel.
2. Connect the audio input terminal to the audio source, such as MP3, mobile phone, computer, etc.; it is recommended to connect the output terminal of the front power amplifier board
3. Two audio output terminals are connected to two speakers respectively
